Bending Beam
Load Cells
ALPHA
The bending beam load cell ALPHA has excellent precision in small dimensions, is easy to install, has a high temperature range of use and is equipped with a shielded 4-conductor cable 1.5 meters long for electrical connection. The ALPHA cell is used in a vast field of medical and industrial applications.
Specification| Rated load RL: 25, 50, 100, 150, 250, 500 N |
| Combined error: < ±0.02 % RO |
| Repeatability: < ±0.01 % RO |
| Creep (20 minutes): ±0.05 % RO |
| Safe overload: 175 % RL |
| Ultimate overload: 300 % RL |
| Material: Copper and tin – plated brass |
| Degree of protection: IP67 |
| Deflection: 0.254 mm (25÷ 250 N); 0.432 mm (500 N) |
| Compensated Temperature: -15 ÷ +65 °C |
| Temperature range: -25 ÷ +80 °C |
| Temperature effect on zero balance: < ±0.0014 % RO/°C |
| Temperature effect on output: < ±0.0014 % load/°C |
| Rated output RO: 3.0 mV/V |
| Zero balance: < ±2 % RO |
| Insulation resistance: 2000 MOhm |
| Input resistance: 350 ± 3.5 Ohm |
| Output resistance: 350 ±3.5 Ohm |
| Recommended input: 5 ÷ 12 Vdc/ac |
| Maximum supply voltage: 20 Vdc/ac |

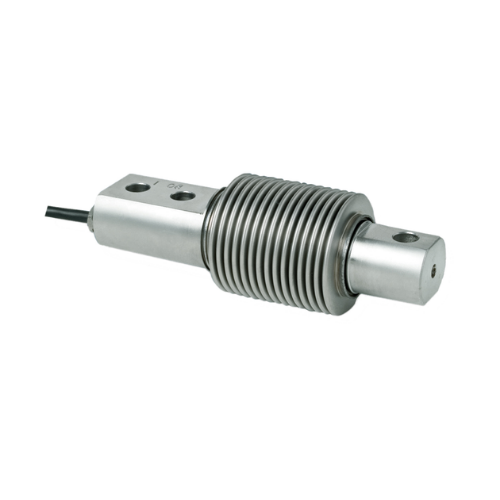

Bending beam load cell
BBR
BBR
The bending beam load cell BBR is made of stainless steel, is completely welded and has a thermal seal. The cell BBR has been designed for weighing tanks, hoppers, belts, platforms, single-cell systems, suspended loads and automatic packaging machines and is supplied with a shielded cable 3 meters long.
SpecificationTechnical Specifications
| Rated load (RL): 5, 10, 20, 30, 50, 75, 100, 150, 200, 250, 300, 500 Kg |
| Combined error: < ±0.017 % RO |
| Repeatability: < ±0.015 % RO |
| Creep (20 minutes): ±0.016 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 200 % RL |
| Accuracy class: 3000 OIML |
| Deflection: 0.2 ÷ 0.4 mm |
| Compensated Temperature: -10 ÷ +40°C |
| Temperature range: -20 ÷ +50°C |
| Temperature effect on zero balance: < ±0.01 % RO/5°K |
| Temperature effect on output: < ±0.006 % RO/5°K |
| Rated output RO: 2 mV/V ±0.1 % |
| Zero balance: < ±2 % RO |
| Insulation resistance: > 5000 M Ohm |
| Input resistance: 400 ±20 Ohm |
| Output resistance: 400 ±20 Ohm |
| Recommended input: 5 ÷ 15 Vdc/ac |
| Degree of protection: IP68 – IP69K |
