MICRO-EPSILON

Micro-Epsilon is one of the leading sensors manufacturers worldwide. For more than 50 years they have continuously produced reliable, high performance, unique solutions particularly when high precision measurement or inspection is required. Micro-Epsilon offers the largest range of high precision displacement sensors, infrared temperature sensors, color sensors as well as dimensional measurement devices and systems for industrial applications. Whether your field is research and development, manufacturing automation or machine building, they offer solutions that meet the specific requirements of your individual measurement task.

Precision Measurement

High Speed Laser Displacement Sensor

2D Laser Scanner Profile Measurement

Confocal chromatic measurement system

Inductive sensors (eddy current)

Draw-wire displacement sensors

MicroEpsilon Capacitive sensors

Laser Micrometer Micro-Epsilon

3D Sensor Micro-Epsilon

Temperature Measurement

Micro Epsilon in Sciengate Automation (M) Sdn Bhd, we offer the whole range of Non-Contact IR sensor. IR temperature sensors and IR cameras are used in a variety of applications within any industry from R&D to production and process monitoring.

Spotfinder Pyrometers

3D Sensors

The new generation of Micro-Epsilon’s 3D sensors impresses with high accuracy during measurement and assessment of components and surfaces. The surfaceCONTROL and reflectCONTROL inspection systems from Micro-Epsilon are intended for matt and shiny surfaces respectively. The 3D snapshots are recorded in a short time and provide detailed 3D point clouds.

These 3D sensors are used, e.g., for geometric component testing, position determination, presence checks and the measurement of flatness or planarity. Thanks to their high performance, the sensors are used for inline applications, on robots and also for offline inspection.
surfaceCONTROL 3D 3500 surfaceCONTROL 3D 3200 surfaceCONTROL 3D 2500 reflectCONTROL RC130 Sensor
Draw-wire Sensors

Draw-wire displacement sensors measure linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal. Measurements are performed with high accuracy and high dynamic response. The use of high quality components guarantees a long life cycle and high operational reliability

wireSENSORs are application friendly due to the excellent measurement range to size ratio and the fact that they are easy to mount and use. The rugged sensor construction ensures reliable operation even under difficult ambient conditions.
wireSENSOR mechanics WPS-MK88-analog wireSENSOR MT wireSENSOR K wireSENSOR WPS-MK30 analog Miniature draw-wire sensors – WDS-MPM
Laser Micrometer

Micrometers from Micro-Epsilon operate according to the ThruBeam principle. Here, the transmitter produces a parallel light curtain that is
transmitted via a lens arrangement into the receiving unit. The beam is interrupted if there is an object in the light path. The shadowing generated by this object is recorded by the receiving optical system and output as a geometric value.
Several types of ThruBeam technology are used across the six different sensor models in the range so as to cover as wide a field of applications as possible. Optical micrometers can be used for dimensional measurements in production, quality assurance and service tasks. Factors such as the diameter, gap, height, position and also the received amount of light or opacity can be measured.
optoCONTROL 1200 optoCONTROL 2600 optoCONTROL 1202 optoCONTROL 1220 optoCONTROL 2500 optoCONTROL 2520
Spotfinder
Pyrometers

IR temperature sensors and handheld pyrometers from Micro Epsilon are designed for measuring surface temperatures from -50°C to 2200°C. The infrared radiation emitted by a body is used for the measurement. As this measurement is a non-contact technology, the devices perform wear-free and can therefore be reliably used in the long term.

Selectable models and optical systems enable to install the sensors in different distances from the surface. This enables measurements to the target from a safe distance in critical operation areas. For better positioning, Innovative infrared temperature sensor was ready with laser sighting. For extremely tiny installation environments, miniaturized IR sensors are used.
thermoMETER CT thermoMETER CTLaser thermoMETER CS Video thermoMETER CS thermoMETER TIM 8
High Speed Laser
Displacement Sensor

optoNCDT sensors have set milestones for industrial laser displacement measurement. Micro-Epsilon laser sensors stand out due to size, measuring rate, software and, above all, due to precision.

The sensor operates with a laser diode, which projects a visible light spot onto the measurement target. The light reflected from the spot is imaged by an optical receiving system onto a position-sensitive element. CMOS and CCD are used as the position-sensitive element in this high-performance sensors.

Laser-based optical displacement sensors measure from a large distance to the target using a very small spot which enables measurements on the very small parts. The large measurement distance in turn enables measurements to be taken against difficult target surfaces such as hot metals. The non-contact principle enables wear-free measurements as the sensors are not subject to any physical contact with the target. Furthermore, the laser triangulation principle is ideal for very fast measurements with high accuracy and resolution.
optoNCDT 1220 optoNCDT 1320 optoNCDT1420 optoNCDT 1750 optoNCDT 1900 optoNCDT 2300 Blue Laser Displacement IF1032ETH
2D Laser Scanner
Profile Measurement

Laser profile scanners from Micro-Epsilon are among the highest performing profile sensors with respect to accuracy and measuring rate. Equipped with powerful processors and highly sensitive optical components, these scanners ensure precise profile measurements on nearly any type of surface. While they can be integrated in various environments, the scanners also impress with a compact design which includes an integrated controller.
scanCONTROL 25xx models scanCONTROL 26xx series scanCONTROL 29xx series scanCONTROL 30xx laser scanners

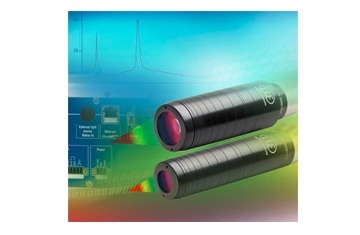

Confocal chromatic
measurement system

The confocalDT product range stands for highest precision and dynamics in the confocal chromatic measurement technology. The measuring system includes the fastest controller currently available, enabling high precision measurement results in displacement and distance measurement tasks, as well as thickness measurement of transparent objects. A large number of sensors and different interfaces can be used in versatile measurement tasks, e.g., in the semiconductor industry, glass industry, medical engineering and machine building.
confocalDT IFS 2405 confocalDT IFS 2406 confocalDT IFS 2430 confocalDT IFS 2407-0-1
Inductive Sensors
(eddy current)

Eddy current sensors from Micro-Epsilon are designed for non-contact measurement of displacement, distance, position, oscillation and vibrations. They are particularly suitable when high precision is required in harsh industrial environments (pressure, dirt, temperature).
eddyNCDT 3001 eddyNCDT 3005 eddyNCDT 3060 eddyNCDT 3300 turboSPEED DZ140
Capacitive Sensors

Capacitive sensors are designed for non-contact measurement of displacement, distance and position, as well as for thickness measurement. The sensors measure against all electrically conductive materials, and with appropriate electronic circuitry even against insulators. Due to their high signal stability and resolution, capacitive displacement sensors are applied in laboratories and industrial measurement tasks. In production control, for example, capacitive sensors measure film thickness and application of the adhesive.
capaNCDT MD6-22 capaNCDT 6500 capaNCDT 6200 capaNCDT DT61x0/IP capaNCDT 6110
