Pressure Transmitter
4-20mA/0-10V
Features
- Pressure measuring range: 100 mbar … 1000 bar
- Accuracy: ≤ ± 0.25 % FS
- Operating temperature: -40 … 125°C
- Process temperature: -40 … 150°C
- Output signal: 0 … 5 / 0 … 10 VDC, 4 … 20 mA
- Total Error Band: ≤ ± 0.70 %FS (0 … 70°C)
- Materials: Stainless steel
Specification
Pressure measuring range (bar)
| | 0.1 … 0.5, (1) | > 0.5 … 2 | > 2 … 100 |
|---|
| Overpressure | 3 bar | 3 x FS (≥ 3 bar) | 3 x FS |
|---|
| Burst pressure | > 200 bar | > 200 bar | > 850 bar |
|---|
| Accuracy, (4), (± % FS) | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 |
|---|
| Total Error, (5), (± % FS) | | | |
|---|
| 0 … 70°C, (typ. / max.) | ≤ 1.0 / 1.5 | ≤ 0.7 / 1.0 | ≤ 0.7 / 1.0 |
|---|
| -25 … 100°C, (typ. / max.) | ≤ 2.0 / 2.5 | ≤ 1.0 / 1.5 | ≤ 1.0 / 1.5 |
|---|
| -40…100°C, (typ. / max.) | ≤ 1.5 / 2.0 | ≤ 1.0 / 1.5 | ≤ 1.0 / 1.25 |
|---|
| Response time, (typ.) | < 1ms / 10 … 90% FS | < 1ms / 10 … 90% FS | < 1ms / 10 … 90% FS |
|---|
| Long term stability, (6) | < 0.5% FS / < 4 mbar | < 0.2% FS / < 4 mbar | < 0.1% FS / < 0.2% FS |
|---|
| | > 100 … 600, (3) | > 600 … 1000, (2) |
|---|
| Overpressure | 3 x FS (≤ 850 / ≤ 1500 bar) | 1500 bar |
|---|
| Burst pressure | > 850 / ≤ 1500 bar | > 1500 bar |
|---|
| Accuracy, (4), (± % FS) | ≤ 0.25 | ≤ 0.25 |
|---|
| Total Error, (5), (± % FS) | | |
|---|
| 0 … 70°C, (typ. / max.) | ≤ 0.7 / 1.0 | ≤ 0.7 / 1.0 |
|---|
| -25 … 100°C, (typ. / max.) | ≤ 1.0 / 1.5 | ≤ 1.0 / 1.5 |
|---|
| -40…100°C, (typ. / max.) | ≤ 1.0 / 1.25 | ≤ 1.0 / 1.25 |
|---|
| Response time, (typ.) | < 1ms / 10 … 90% FS | < 1ms / 10 … 90% FS |
|---|
| Long term stability, (6) | < 0.1% FS / < 0.2% FS | < 0.1% FS / < 0.2% FS |
|---|
Temperature range
| | |
|---|
| Operating temperature | -40 … 125°C |
|---|
| Process temperatur | -40 … 150°C |
|---|
| Storage temperatur | -40 … 125°C |
|---|
Electrical specifications
| | 4 … 20 mA | 0 … 5 V | 0 … 10 V |
|---|
| Power supply | 9 … 33 VDC | 10 … 30 VDC | 12 … 30 VDC |
|---|
| Supply influence | < 0.05% FS | < 0.05% FS | < 0.05% FS |
|---|
| Current consumption | | | |
|---|

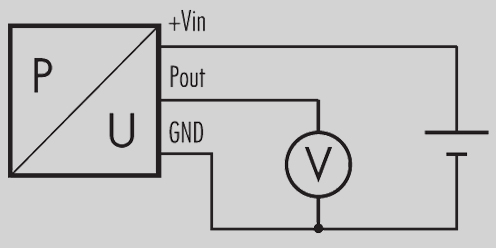

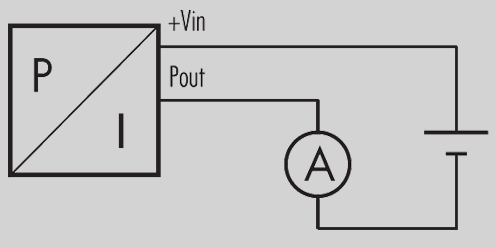

| Circuit diagram | | | |
|---|

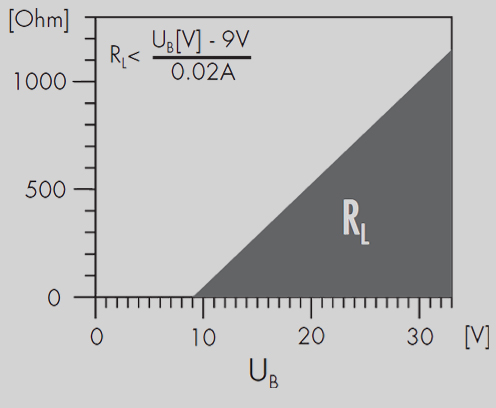

| Load resistance | | | |
|---|
| Load influence | < 0.05% FS | < 0.05% FS | < 0.05% FS |
|---|
Download Datasheet
ATM.ECO – Analog Pressure Transmitter with Temperature Compensation
High Precision Pressure Transmitter
4-20mA / 0-10V
Features
- Pressure measuring range: 100 mbar … 1000 bar
- Accuracy: ≤ ± 0.10 / 0.05 % FS
- Operating temperature: -40 … 125°C
- Process temperature: -40 … 150°C
- Output signal: 0 … 5 / 0 … 10 VDC, 4 … 20 mA
- Total Error Band: ≤ ± 0.30 %FS (0 … 70°C)
- Materials: Stainless steel, Titanium
Specification
Pressure measuring range (bar)
| | 0.1 … 0.5 (1) | > 0.5 … 2 | > 2 … 100 |
|---|
| Overpressure | 3 bar | 3 x FS (≥ 3 bar) | 3 x FS |
|---|
| Burst pressure, (5) | > 200 bar | > 200 bar | > 850 bar |
|---|
| Accuracy, (6), (± % FS) | ≤ 0.10 | ≤ 0.10 / ≤0.05 (9) | ≤ 0.10 / ≤0.05 (9) |
|---|
Total Error, (7),
(± % FS ; typ. / max.) | | | |
|---|
| -25…100 °C compensated / Allowed process temperature -40…150°C, (8) | ≤ 1.3 / 1.5 | ≤ 0.75 / 1.0 | ≤ 0.75 / 1.0 |
|---|
| -25…100 °C compensated / Allowed process temperature -40…150°C, (9) | n.a. | ≤ 0.3 / 0.6 | ≤ 0.3 / 0.6 |
|---|
| -40…125 °C compensated / Allowed process temperature -40…150°C, (9) | n.a. | ≤ 0.5 / 0.8 | ≤ 0.5 / 0.8 |
|---|
| -40…100°C compensated / Allowed process temperature -40…150°C, (8) | ≤ 1.5 / 2.0 | ≤ 1.0 / 1.5 | ≤ 1.0 / 1.25 |
|---|
| 0…70 °C compensated / Allowed process temperature -40…150°C, (8) | ≤ 0.5 / 1.0 | ≤ 0.2 / 0.4 | ≤ 0.1 / 0.3 |
|---|
| 0…70 °C compensated / Allowed process temperature -40…150°C, (9) | n.a. | ≤ 0.1 / 0.2 | ≤ 0.1 / 0.2 |
|---|
| Response time, (typ.) | < 1ms / 10…90% FS | < 1ms / 10…90% FS | < 1ms / 10…90% FS |
|---|
| Long term stability, (10) | < 0.5% FS / < 4 mbar | < 0.2% FS / < 4 mbar | < 0.1% FS / < 0.2% FS |
|---|
| | > 100 … 600, (2), (4) | > 600 … 1000, (3) |
|---|
| Overpressure | 3 x FS (≤ 850 / ≤ 1500 bar) | 1500 bar |
|---|
| Burst pressure, (5) | > 850 / ≤ 1500 bar | > 1500 bar |
|---|
| Accuracy, (6), (± % FS) | ≤ 0.10 | ≤ 0.25 |
|---|
Total Error, (7),
(± % FS ; typ. / max.) | | |
|---|
| -25…100 °C compensated / Allowed process temperature -40…150°C, (8) | ≤ 0.75 / 1.0 | ≤ 0.75 / 1.0 |
|---|
| -25…100 °C compensated / Allowed process temperature -40…150°C, (9) | n.a. | n.a. |
|---|
| -40…125 °C compensated / Allowed process temperature -40…150°C, (9) | n.a. | n.a. |
|---|
| -40…100°C compensated / Allowed process temperature -40…150°C, (8) | ≤ 1.0 / 1.25 | ≤ 1.0 / 1.25 |
|---|
| 0…70 °C compensated / Allowed process temperature -40…150°C, (8) | ≤ 0.3 / 0.5 | ≤ 0.3 / 0.5 |
|---|
| 0…70 °C compensated / Allowed process temperature -40…150°C, (9) | n.a. | n.a. |
|---|
| Response time, (typ.) | < 1ms / 10…90% FS | < 1ms / 10…90% FS |
|---|
| Long term stability, (10) | < 0.1% FS / < 0.2% FS | < 0.1% FS / < 0.2% FS |
|---|
Temperature range
| | |
|---|
| Operating temperature | -40…125 °C |
|---|
| Process temperatur | -40…150 °C |
|---|
| Storage temperatur | -40…125 °C |
|---|
Electrical specifications
| | 4 … 20 mA | 0 … 5 V | 0 … 10 V |
|---|
| Power supply | 9…33 V DC | 10…30 V DC | 12…30 V DC |
|---|
| Supply influence | < 0.05% FS | < 0.05% FS | < 0.05% FS |
|---|
| Current consumption | | | |
|---|
| Circuit diagram | | | |
|---|
| Load resistance | | | |
|---|
| Load influence | < 0.05% FS | < 0.05% FS | < 0.05% FS |
|---|
Download Datasheet
High Precision Pressure Transmitter 4-20mA / 0-10V
Intrinsically Safe
Pressure Transmitter
Features
- Pressure measuring range: 100 mbar … 1000 bar
- Accuracy: ≤ ± 0.25 % FS
- Operating temperature: -40 … 125°C
- Process temperature: -40 … 150°C
- Output signal: 4 … 20 mA
- Total Error Band: ≤ ± 0.70 %FS (0 … 70°C)
- Materials: Stainless steel
Specification
Pressure measuring range (bar)
| | 0.1 … 0.5, (1) | > 0.5 … 2 | > 2 … 100 |
|---|
| Overpressure | 3 bar | 3 x FS (≥ 3 bar) | 3 x FS |
|---|
| Burst pressure, (4) | > 200 bar | > 200 bar | > 850 bar |
|---|
| Accuracy, (5), (± % FS) | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 |
|---|
| Total Error, (6), (± % FS) | | | |
|---|
| 0 … 70°C, (typ. / max.) | ≤ 1.0 / 1.5 | ≤ 0.7 / 1.0 | ≤ 0.7 / 1.0 |
|---|
| -25 … 100°C, (typ. / max.) | ≤ 2.0 / 2.5 | ≤ 1.0 / 1.5 | ≤ 1.0 / 1.5 |
|---|
| Response time, (typ.) | < 1ms / 10 … 90% FS | < 1ms / 10 … 90% FS | < 1ms / 10 … 90% FS |
|---|
| Long term stability, (7) | < 0.5% FS / < 4 mbar | < 0.2% FS / < 4 mbar | < 0.1% FS / < 0.2% FS |
|---|
| | > 100 … 600, (2) | > 600 … 1000, (3) |
|---|
| Overpressure | 3 x FS (≤ 850 / ≤ 1500 bar) | 1500 bar |
|---|
| Burst pressure, (4) | > 850 / ≤ 1500 bar | > 1500 bar |
|---|
| Accuracy, (5), (± % FS) | ≤ 0.25 | ≤ 0.25 |
|---|
| Total Error, (6), (± % FS) | | |
|---|
| 0 … 70°C, (typ. / max.) | ≤ 0.7 / 1.0 | ≤ 0.7 / 1.0 |
|---|
| -25 … 100°C, (typ. / max.) | ≤ 1.0 / 1.5 | ≤ 1.0 / 1.5 |
|---|
| Response time, (typ.) | < 1ms / 10 … 90% FS | < 1ms / 10 … 90% FS |
|---|
| Long term stability, (7) | < 0.1% FS / < 0.2% FS | < 0.1% FS / < 0.2% FS |
|---|
Electrical specifications
| | 4 … 20 mA |
|---|
| Power supply | 9 … 28 VDC |
|---|
| Supply influence | < 0.05% FS |
|---|
| Circuit diagram | |
|---|
| Load resistance | |
|---|
| Load influence | < 0.05% FS |
|---|
ATEX Approval
| | [SpalteLeer] | [SpalteLeer] | [SpalteLeer] |
|---|
| Certificate, (1) | SEV 09 ATEX 0108 X | IECEx SEV 10.0003 X | IECEx MSC 14.0002 X |
|---|
| Gas | II 1G Ex ia IIB/IIC T3 … T6 | EN 60079-0 / -11 / -26 | |
|---|
| Dust | II 1D Ex ia IIIC IP6x T140°C … T70°C | EN 61241-0 / -11 | |
|---|
| Mining | I M1 Ex ia I | EN 50303 | |
|---|
| Temperature class, (2) | T6 | T4 | T3 |
|---|
| Process temperature | -40 … 50 °C | -40 … 100 °C | -40 … 150 °C |
|---|
| Ambient temperature | -40 … 50°C | -40 … 90°C | -40 … 125°C |
|---|
| Maximum values of the intrinsically safe circuit | 28V / 93 mA / 0.65W | | |
|---|
Download Datasheet
Intrinsically Safe Pressure Transmitter
