Off Center
load cell C2G1
C2G1
The Off Center C2G1 load cell is capable of weighing while maintaining high precision and maximum reliability even with off-center loads and is particularly suitable for the construction of industrial and bench electronic scales, piece counters and packaging machines. The maximum dimensions of the applicable work plan are 300x300 mm. The off center cell C2G1 is equipped with a 4-conductor shielded cable.
| Rated load RL: 0.25 ÷ 10, 15, 20, 25, 35, 50, 100, 200 t |
| Combined error: < ± 0.05 % RO |
| Repeatability: < ±0.03 % RO |
| Creep (20 minutes): ±0,03 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 300 % RL |
| Material: Stainless steel |
| Degree of protection: IP68 |
| Compensated Temperature: -10 ÷ +40 °C |
| Temperature range: -20 ÷ +70 °C |
| Temperature effect on zero balance: 0.003 % RL/°C |
| Temperature effect on output: 0.002 % output/°C |
| Rated output RO: 2 mV/V ±0.1 % |
| Zero balance: < ± 1 % RO |
| Insulation resistance: > 2000 MOhm |
| Input resistance: 700 ÷ 710 Ohm |
| Output resistance: 700 ÷ 705 Ohm |
| Recommended input: 5 ÷ 15 Vdc/Vac |
Off Center

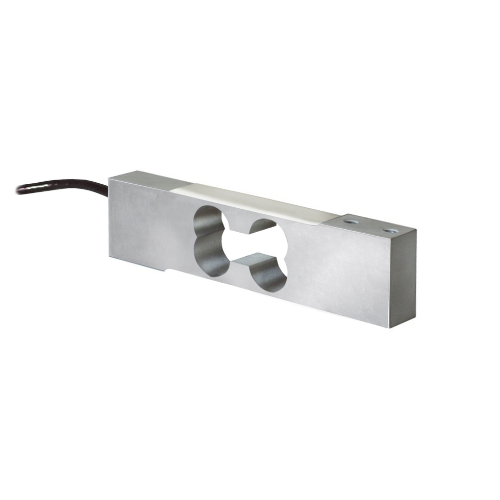

load cell CB004
CB004
The off center load cell CB004 guarantees high precision at a competitive price and is particularly suitable for the construction of industrial and bench electronic scales, piece counters and packaging machines. The CB004 cell can be customized according to the customer's needs, for example the capacity ranges from 10 kg to 100 kg and the maximum size of the dish reaches up to 400 x 400 mm. The CB004 cell has a 4 meters shielded 4-conductor cable.
Technical Specifications
| Rated load (RL): 10, 15, 20, 25, 30, 35, 45, 60, 100 Kg |
| Repeatability: < ±0.015 % RO |
| Creep (20 minutes): ±0,02 % RO |
| Full scale non-Linearity: < ±0.0125 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 200 % RL |
| Material: Alluminum alloy |
| Degree of protection: IP64 |
| Accuracy class: 4000 / 6000 OIML |
| Compensated Temperature: -10 ÷ +50 °C |
| Temperature range: -10 ÷ +50 °C |
| Temperature effect on zero balance: < ±0.004 % RO/°C |
| Temperature effect on output: < ±0.0012 % load/°C |
| Rated output RO: 2.0 ±0.2 mV/V |
| Zero balance: < ±0.1% of R.O. |
| Insulation resistance: > 2000 MOhm |
| Input resistance: 375 ÷ 425 Ohm |
| Output resistance: 345 ÷ 355 Ohm |
| Recommended input: 5 ÷ 12 Vdc/Vac |
| Maximum supply voltage: 20 Vdc/ac |
Off Center

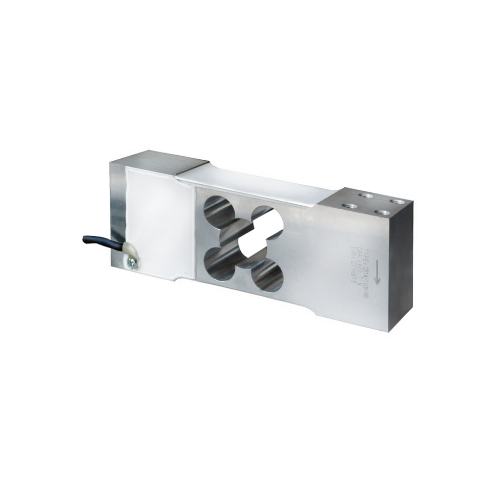

load cell CB14
CB14
The off center load cell CB14 has high capacity and precision at a competitive price and is particularly suitable for the construction of electronic scales in electromedical equipment. The CB14 cell can be customized, for example the flow rate can vary from 100 to 500 kg and the plate dimensions are 450 x 600 mm. The CB14 off-center cell has a 4-conductor cable 1.5 meters long for the electrical connection.
Technical Specifications
| Rated load (RL): 100, 150, 250, 300, 500 Kg |
| Combined error: ±0.03 % RO |
| Repeatability: ±0.02 % RO |
| Creep (20 minutes): ±0.02 % RO |
| Full scale non-Linearity: < ±0.0125 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 200 % RL |
| Material: Alluminum alloy |
| Degree of protection: IP64 |
| Accuracy class: 6000 OIML |
| Compensated Temperature: -10 ÷ +50 °C |
| Temperature range: -10 ÷ +70 °C |
| Temperature effect on zero balance: ±0.005 % RO/°C |
| Temperature effect on output: ±0.002 % load/°C |
| Rated output RO: 2.2 mV/V ±0.11 % |
| Zero balance: < ±0.11 mV/V |
| Insulation resistance: > 2000 MOhm |
| Input resistance: 395 ÷ 415 Ohm |
| Output resistance: 345 ÷ 355 Ohm |
| Recommended input: 5 ÷ 12 Vdc/Vac |
| Maximum supply voltage: 20 Vdc/ac |
Off Center

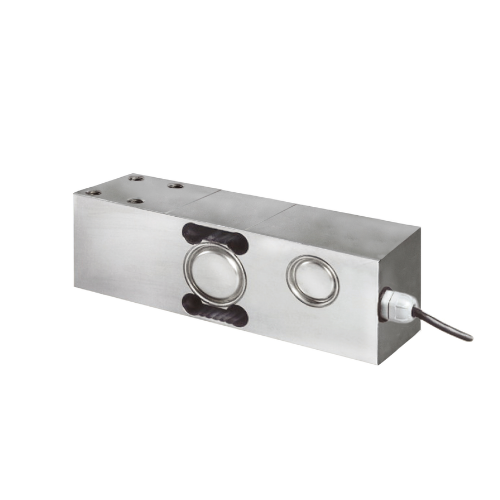

load cell PS19
PS19
The off center load cell PS19 is made of stainless steel and has been designed for the construction of scales for electromedical equipment and for dosing systems. The single point cell PS19 can be customized: the load capacity can vary from 250 kg to 400 kg and the dimensions of the plate can vary from 600 x 600 mm to 800 x 800 mm for cells with a high load capacity.
Technical Specifications
| Rated load (RL): 15, 20, 30, 50, 75, 120, 200, 250, 350, 400 Kg |
| Combined error: < ±0.017 % RO |
| Repeatability: < ±0.010 % RO |
| Creep (30 minutes): ±0.016 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 200 % RL |
| Material: Stainless steel |
| Degree of protection: IP68 |
| Accuracy class: 3000 OIML |
| Deflection: 0.3 ÷ 0.5 mm |
| Compensated Temperature: -10 ÷ +40 °C |
| Temperature range: -20 ÷ +70 °C |
| Temperature effect on zero balance: < ±0.01 % RO/5°K |
| Temperature effect on output: < ±0.006 % on output/5°K |
| Rated output RO: 2.0 ±0.2 mV/V |
| Zero balance: < ±2 % RO |
| Insulation resistance: > 5000 MOhm |
| Input resistance: 400 ±20 Ohm |
| Output resistance: 350 ±3 Ohm |
| Recommended input: 5 ÷ 15 Vcc/ca |
