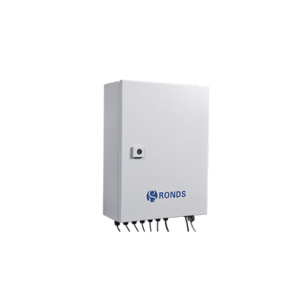

Online Data Collector
RH2000
- Supports 300+ fault characteristic indicators and features black-box storage for edge intelligent alarms and diagnostics.
- Supports real-time synchronous collection of acceleration, eddy current displacement, motor working conditions, rotational speed, and other data.
- Standard 8 channel for vibration, expandable to 16/24 channels.
- Compatible with Gigabit/100M Ethernet, fiber optics, WiFi, and 4G/5G communication methods, making it adaptable to various industrial environments.
- Equipped with a 1.5GHz dual-core high-performance chip and 8G large-capacity storage, enabling high-speed data storage and computational processing.
- Features an automatic diagnostic function to determine whether vibration, process, rotational speed, and various collection channels and sensors are functioning properly.
Sensors
RW606(M) Wireless Tri-axial Vibration,Temperature and Speed Sensor
- Frequency range: Piezo(Z) direction：2Hz~20KHz,±3dB; MEMS(X,Y) directions: 2Hz~1kHz，±3dB
- Waveform length: Piezo Z Maximal 256K; Mems X,Y Maximal 16K
- Wireless single-axis piezoelectric and dual-axis MEMS vibration and temperature integrated sensor.
- Exclusive motor condition data collection and analysis capability, intelligently recognizing speed, no-load, load, and startup/shutdown states.
- Ultra-low power consumption design with a 19Ah large battery.
- Multi-indicator system edge computing deployment.
- IP grade: IP68.
- ATEX Zone 0,1,2
Sensors
RH505
- Internally acceleration and temperature sensor, collect velocity, acceleration, displacement and temperature signals
- The vibration signal can be displayed as spectrum and waveform in software.
- Zigbee communication, for on-site use specially
- Strong anti-jamming capability, long distances transmission from data collector according to real industrial conditions.
- Diameter 42mm*h65mm, small volume, easy to fix and maintain.
- Low battery consumption design collect data by every two hours, sustainable work for 2 years or longer.
- Intelligent self-inspect function, warning for abnormal any time, saved time to check on site.
- ExiallCT4, can be sued in 0 area,IP67,waterproof, dust-proof.
SENSOR
RH605

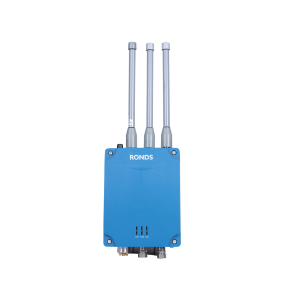

Wireless Data Collector
RH570
- Equipped with Ethernet, optical fiber, 4G, 5G, WiFi, Zigbee, and LoRa communication options to adapt to various network environments.
- Compatible with our single-axis vibration, three-axis vibration, and other wireless monitoring sensors for mixed use, meeting different monitoring needs.
- Uses machine learning classification algorithms to accurately identify and categorize equipment startup and shutdown states.
- Supports edge intelligence alarms with a comprehensive alarm index system and adaptive threshold calculation, enabling graded alarm output based on fault severity.
- Can upload alarm data in real-time according to fault severity, meeting the monitoring needs of rapidly deteriorating equipment.
- Ensures time-synchronized data uploads, enhancing intelligent diagnostics and preventing time-sequence misalignment among different collection points.
LORA Sensor
RW160
RW160 wireless vibration and temperature sensor is a monitoring device that replaces the manual inspection of small pumps, motors, fans and other equipment in industrial sites. Based on LORA communication technology, the product has the characteristics of stability, large battery capacity, convenient communication and intelligence. It adopts intrinsically safe design and has IP68 protection level, which can be applied to harsh industrial site environments in Zone 0, Zone 1 and Zone 2. It can monitor temperature and three axial vibration: one axial of piezoelectric and two axial of MEMS.
RH712
Vibration Analyzer
RH712 vibration analyzer is an intelligent wifi vibration analzyer with touch screen, very user friendly. It can make precise vibration analysis. There are many analysis tools in the software such as trend, time waveform, spectrum, envelope demodulation etc.
FEATURES
- Touch Screen
- Route measurements downloaded from PC software
- Waveform/spectrum analysis and alarm remind
- Manual input function
- Infrared temperature measurement
- Set equipment status
- Multi-communication method with server: Wi-Fi or USB
- Camera function
- Professional PC analysis software
- Explosion proof version is available and optional
- CE marking available
