Compression
load cells

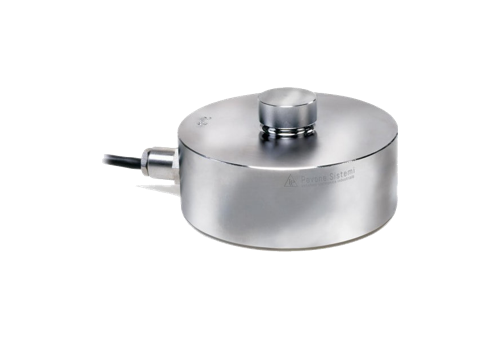

The CC3 Compression Load Cell has been designed to meet the requirements of a wide range of industrial weighing applications, it has excellent accuracy and robustness thanks to the stainless steel construction, which guarantees maximum resistance to impacts and overloads. The CC3 load cell can be customized and the user can decide whether to include some options, such as high-temperature version and ATEX or EAC certified versions or not.
| Rated load RL: 0.25 ÷ 10, 15, 20, 25, 35, 50, 100, 200 t |
| Combined error: < ± 0.05 % RO |
| Repeatability: < ±0.03 % RO |
| Creep (20 minutes): ±0,03 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 300 % RL |
| Material: Stainless steel |
| Degree of protection: IP68 |
| Compensated Temperature: -10 ÷ +40 °C |
| Temperature range: -20 ÷ +70 °C |
| Temperature effect on zero balance: 0.003 % RL/°C |
| Temperature effect on output: 0.002 % output/°C |
| Rated output RO: 2 mV/V ±0.1 % |
| Zero balance: < ± 1 % RO |
| Insulation resistance: > 2000 MOhm |
| Input resistance: 700 ÷ 710 Ohm |
| Output resistance: 700 ÷ 705 Ohm |
| Recommended input: 5 ÷ 15 Vdc/Vac |
Pin
Load Cells

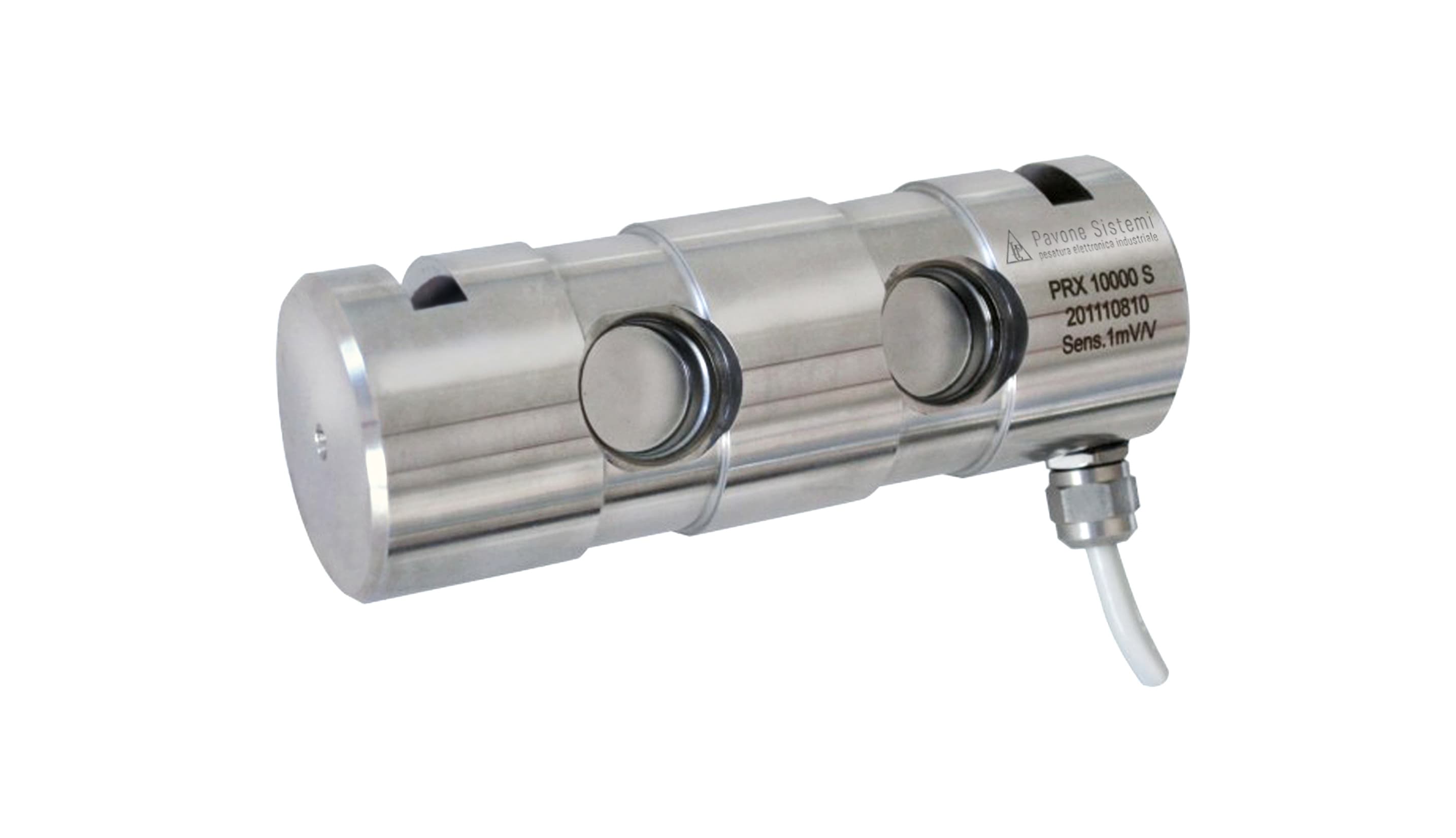

PSPRX
The PSPRX pin load cell is made of stainless steel and offers maximum resistance to impacts and overloads. The operation of the PSPRX load cell is double-ended shear beam. The PSPRX cell is insensitive to side loads and it has been designed for shooting, weighing or anti-overhead systems for overhead cranes. The PSPRX pin load cell can be customized and it has a "high temperature" version.
| Rated load RL: PRN 500 ÷ 4000 kg; PRX 5000 ÷ 100.000 kg |
| Combined error: < ±0.1 % RO |
| Repeatability: < ±0.02 % RO |
| Creep (20 minutes): ±0.03 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 300 % RL |
| Material: Stainless steel |
| Degree of protection: IP65 |
| Deflection: 0.4 mm |
| Compensated Temperature: -10 ÷ +50°C |
| Temperature range: -20 ÷ +70°C |
| Temperature effect on zero balance: < ±0.005 % RO/°C |
| Temperature effect on output: < ±0.005 % RO/°C |
| Rated output RO: 1 mV/V ±0.1 % |
| Zero balance: < ±2 % RO |
| Insulation resistance: > 5000 MOhm |
| Input resistance: 700 ±20 Ohm |
| Output resistance: 700 ±10 Ohm |
| Recommended input: 5 ÷ 15 Vdc/ac |
