LoRa Wireless Condition Monitoring System
LoRa triaxial wireless vibration and temperature sensor: one axial of piezoelectric and two axial of MEMS to monitor pumps, motors, fans and other rotation machines in industrial sites.
MAIN FEATURES OF RONDS LORA SYSTEM

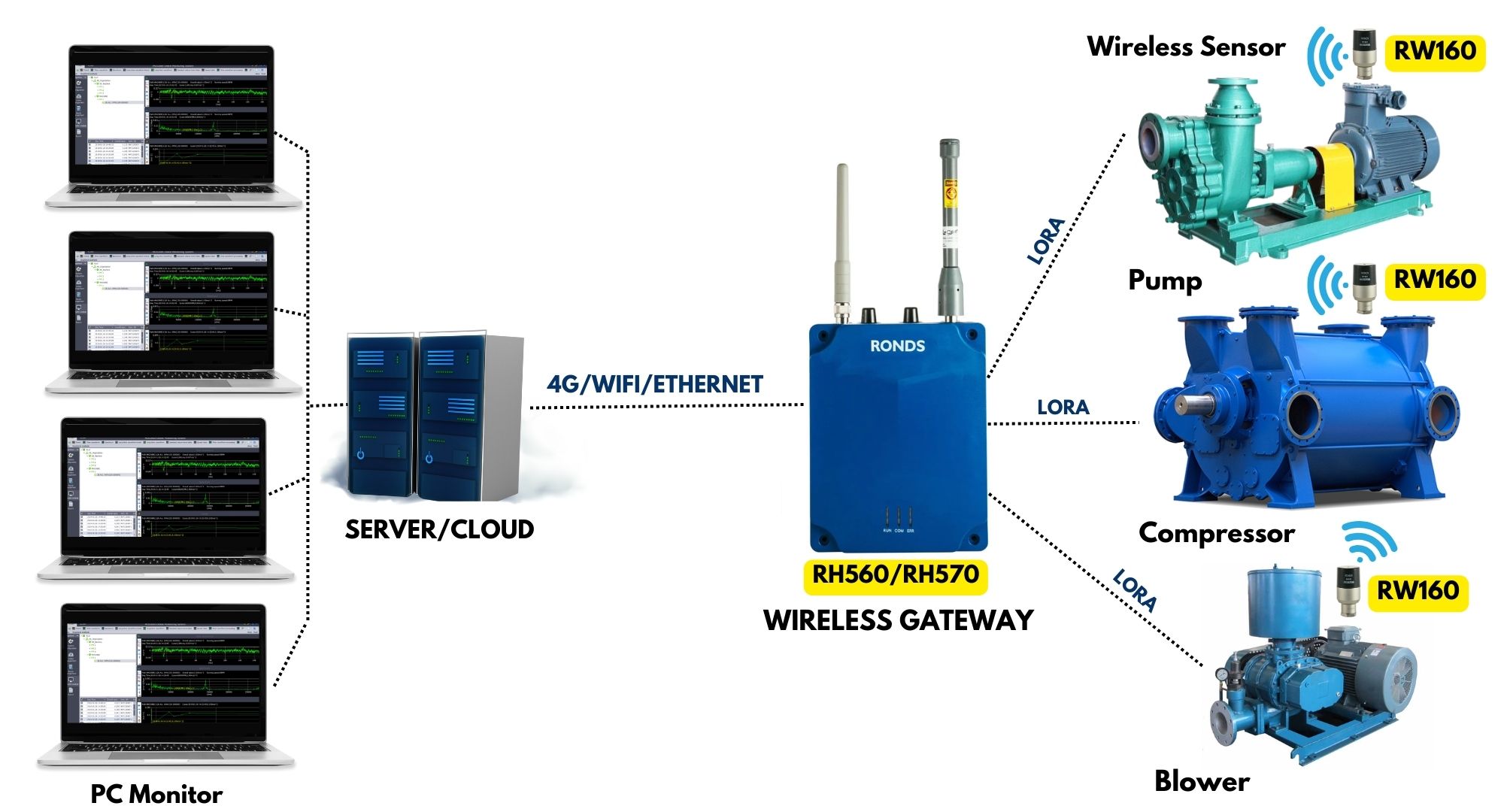

One wireless gateway can cover maximal 255 pieces of RM160 sensors
One sensor collects acceleration, velocity and temperature data.
Maximal 5 years
Maximal 2KM line of sight, different transmission frequency may affect the actual distance
Rw160 is triaxial sensor, one direction is Piezo sensor, the other are two are MEMS sensor.
RW160 supports alarm trigger collection to help the users understand the machine condition
APPLICATION OF CONDITION MONITORING

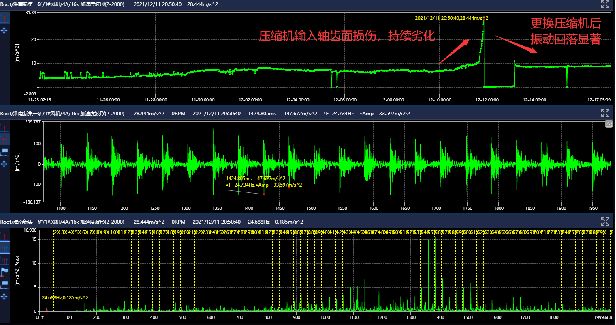

Ronds helped a customer find a damage of the tooth surface of the compressor input shaft. The tooth surface had obvious peeling or broken teeth. The recent deterioration was significant. It is not recommended to continue to run.

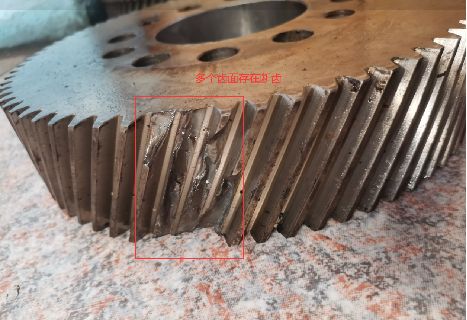

The site personnel shut down the machine to inspect and found that multiple tooth surfaces of the input shaft gear had broken teeth. After the replacement of compressor, the vibration dropped obviously, and the trend was stable.
Application Sharing
Equipment Type: Ball Mill
Rated speed：1000rpm

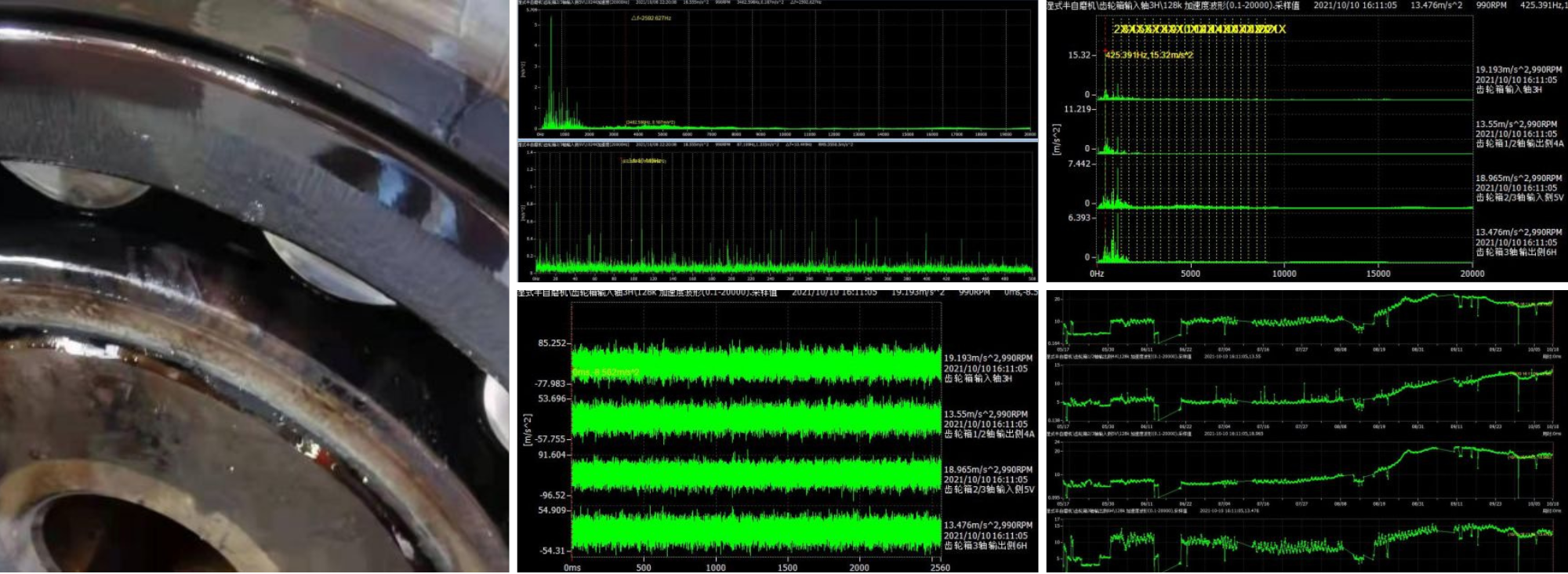

The shaft 2 bearing of the gearbox is damaged in the early and mid-term, mainly due to the uniformly distributed pitting wear of the inner ring, and has deteriorated recently.

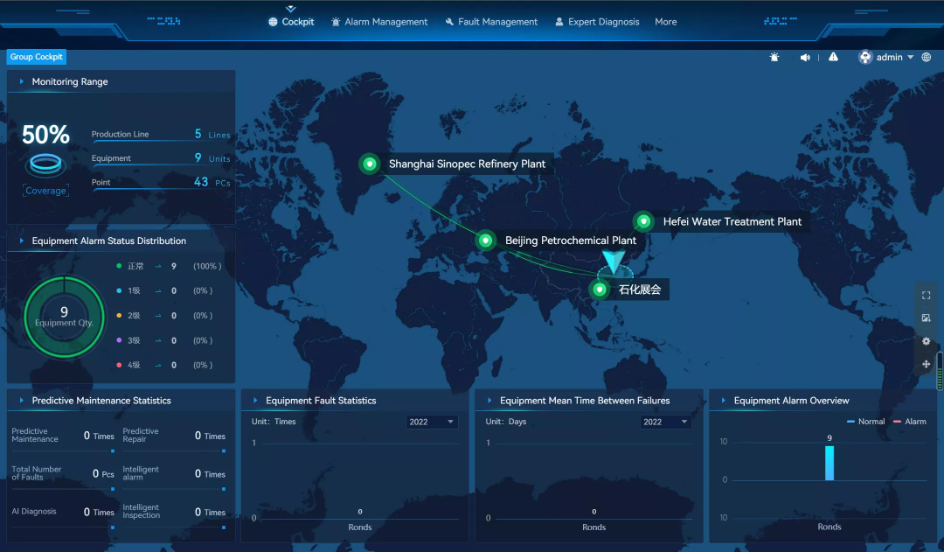

SuperCare Real Time Vibration Analysis
Ronds SuperCare platform uses digital technology to drive the transformation of equipment overhaul and maintenance, life prediction, inventory management and other operation and maintenance businesses, so that the effectiveness, economy, security and other aspects of equipment operation and maintenance can be improved comprehensively.
