Shear beam
load cells 65023
65023
The 65023 shear beam load cell, made of nickel-plated steel and stainless steel, has watertight protection for use in harsh environmental conditions, excellent linearity and precision characteristics and is resistant to 100% side loads. The 65023 shear beam load cell was designed for weighing hoppers and tanks and for the construction of low-profile platforms. The 65023 shear load cell is also available in a special high temperature version. In addition, there are mounting accessories available to facilitate the cell installation: MKX and MH MOUNTING KIT.
Technical Specifications
| Rated load (RL): 125, 250, 500, 750, 1000, 1500, 2000, 3000, 5000 Kg |
| Combined error: ± 0.02 % RO |
| Repeatability: ± 0.01 % RO |
| Creep (20 minutes): ±0.017 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 300 % RL |
| Clamping force without any load: RL 125 ÷ 2000 kg: 136 Nm; RL 3000÷5000kg: 205 Nm |
| Material: Nickel steel, stainless steel |
| Degree of protection: IP67 |
| Accuracy class: 3000 OIML (500÷5000 Kg) |
| Deflection: 0.33 ÷ 0.89 mm |
| Compensated Temperature: -10 ÷ +40°C |
| Temperature range: -18 ÷ +65°C |
| Temperature effect on zero balance: ±0.018 % RO/10°C |
| Temperature effect on output: ±0.012% of output/10°C |
| Rated output RO: 3 mV/V ± 0.25% |
| Zero balance: ±1 % RO |
| Insulation resistance: > 1000 M Ohm |
| Input resistance: 343 ÷ 357 Ohm |
| Output resistance: 349 ÷ 355 Ohm |
| Recommended input: 5 ÷ 15 Vdc/Vac |
Shear beam
load cells SBR
SBR
The SBR shear beam load cell, made of stainless steel and hermetically sealed, has been designed for the fiscal weighing of low-profile hoppers, tanks, belts and platforms, is 100% resistant to side loads and has a 6-conductor shielded cable 5 meters long. Furthermore, the MH MOUNTING KIT mounting accessory is available for this load cell and allows an easy assembly and installation. Also available in nickel-plated steel (SBRA model).
Technical Specifications
| Rated load (RL): 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000 Kg |
| Combined error: < ±0.017 % RO |
| Repeatability: < ±0,015 % RO |
| Creep (30 minutes): < ±0.016 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 200 % RL |
| Clamping force without any load: RL 300 ÷ 2000 kg: 136 Nm; RL 3000 ÷ 5000 kg: 205 Nm |
| Accuracy class: 3000 OIML |
| Deflection: 0.2 ÷ 0.4 mm |
| Compensated Temperature: -10 ÷ +40 °C |
| Temperature range: -30 ÷ +70 °C |
| Temperature effect on zero balance: < ±0.01 % RO/5 °C |
| Temperature effect on output: < ±0.006 % RO/5 °C |
| Rated output RO: 2 mV/V ±0.05 % |
| Zero balance: < ±2 % RO |
| Insulation resistance: > 5000 MOhm |
| Input resistance: 400 ±20 Ohm |
| Output resistance: 350 ±3 Ohm |
| Recommended input: 5 ÷ 15 Vdc/Vac |
| Degree of protection: IP68 - IP69K |
Double Shear Beam
Load Cell DDR
DDR

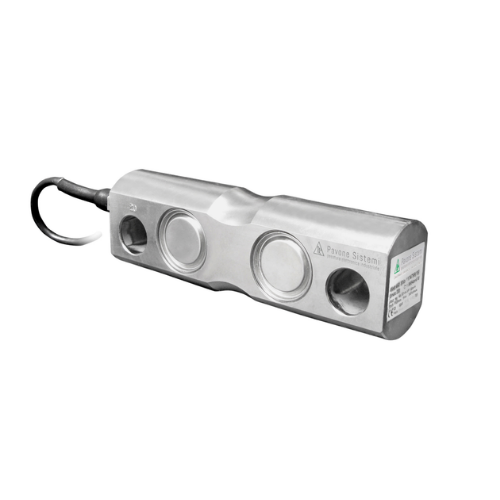

The DDR double shear beam load cell made of stainless steel and with fully welded hermetic seal, is suitable for weighing tanks and silos and has a 12 m shielded 6-conductor cable for electrical connection. The DDR cell is easy to install and has a high linearity and low mechanical profile. Furthermore, it is also available in a high temperature version and can be customized.
Technical Specifications
| Rated Load (RL): 2, 3, 5, 10, 20, 30, 50, 75, 100 t |
| Combined error: < ±0.017 % RO |
| Repeatability: < ±0,015 % |
| Creep (20 minutes): ±0.016 % RO |
| Safe overload: 150 % RL |
| Ultimate overload: 200 % RL |
| Degree of protection: IP68 |
| Accuracy class: 3000 OIML (except for 2, 3 t) |
| Deflection: 0.6 ÷ 1 mm |
| Compensated Temperature: -10 ÷ +40 °C |
| Temperature range: -30 ÷ +70 °C |
| Temperature effect on zero balance: < ±0.010 % RO / 5°C |
| Temperature effect on output: < ±0.006 % RO/5°K |
| Rated output RO: 2 mV/V ±0,1 % |
| Zero balance: < ±2 % RO |
| Insulation resistance: > 5000 M Ohm |
| Input resistance: 800 ±30 Ohm |
| Output resistance: 700 ±5 Ohm |
| Recommended input: 5 ÷ 15 Vdc/Vac |
