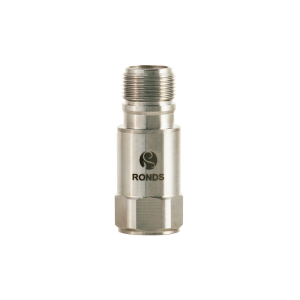

RH103(T) Wired
Vibration Temperature Sensor
- Frequency range：0.4～15KHz(±3dB)
- Sensitivity：100mv/g
- Measuring range: ±80g
- Temperature measuring range ：-40~120℃
- IP grade ：IP68
- ATEX
- Built-in IEPE circuit, isolated output, constant current power supply.
- Laser-sealed welding, strong and reliable.
RH113 ACCELEROMETER
- Low frequency, high sensitivity.
- Built-in IEPE circuit, isolation output, constant current source power supply.
- Laser seal welded.
- Using military connector, can be used for on-line monitoring in harsh industrial sites
RH103 ACCELEROMETER
- Built-in IEPE circuit, isolation output, constant current source power supply.
- Laser seal welded.
- Using military connector, can be used for on-line monitoring in harsh industrial site
RH1000 Online Condition Monitoring
- Full sampling patent technology.
- Designed for variable speed machines monitoring,Synchronization and real-time acquisition of 16 channels vibration & temperature signals.
- Support vibration, displacement, speed, temperature andworking process signal acquisition.
- 24 bit A/D， The dynamic range of the system is above 100dBwhich ensures the accurate acquisition of signal.
- The analysis frequency is up to 40kHz, can calculate 102400 linesFFT.
- Support for Ethernet and RS485 communications, can adapt todifferent industrial sites.
